Determining which teeth have images

You can determine which teeth have images associated with them from a patient's clinical chart and progress notes.

To determine which teeth have images

Use the Patient Search box to access a patient's record.
Notes:
- If the last patient record you accessed since you last logged on is the correct patient's record, you do not need to re-enter the patient's name in the Patient Search box.
- You can include inactive patients in the search results by setting the Include inactive patients switch to On.
On the Patient menu, under Clinical, click (or tap) Chart.
The patient's clinical record opens with the Chart tab selected.
Do one of the following:

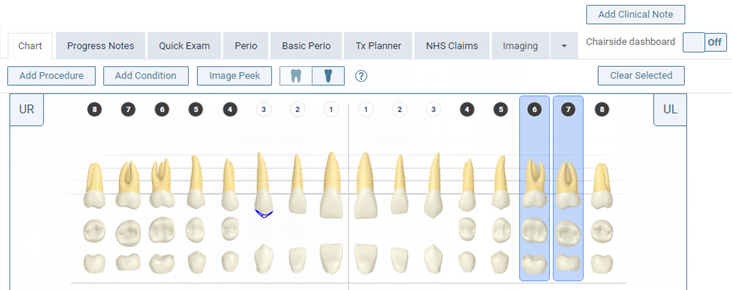

- Look at a tooth's number. You can tell if a tooth has an image associated with it, and the age of that image, by the background colour of the circle around that tooth number: black is 0 - 6 months, dark grey is 7 - 12 months, light grey is 13 - 24 months, and white is 25 or more months (or no image).

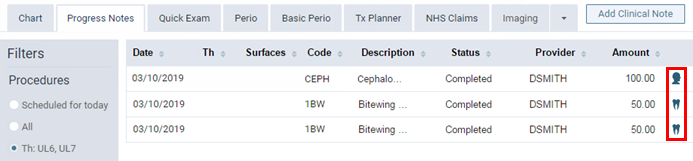

- Select one or more or no teeth, and then click (or tap) the Progress Notes tab. On the Progress Notes tab, there is an imaging icon next to any procedure that has images associated with it.

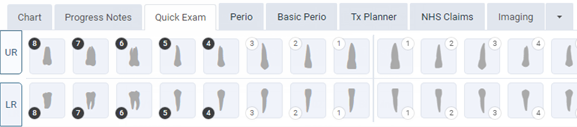

- Select one or more or no teeth, and then click (or tap) the Quick Exam tab. On the Quick Exam tab, look at a tooth's number. You can tell if a tooth has an image associated with it, and the age of that image, by the background colour of the circle around that tooth number: black is 0 - 6 months, dark grey is 7 - 12 months, light grey is 13 - 24 months, and white is 25 or more months (or no image).
